Spotlight at Door Handles DHA1007-02-BL

Door Handles

DHA1007-02-BL

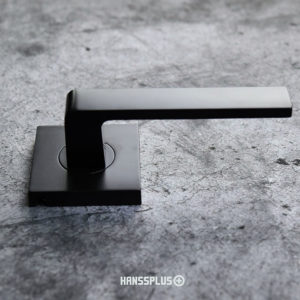

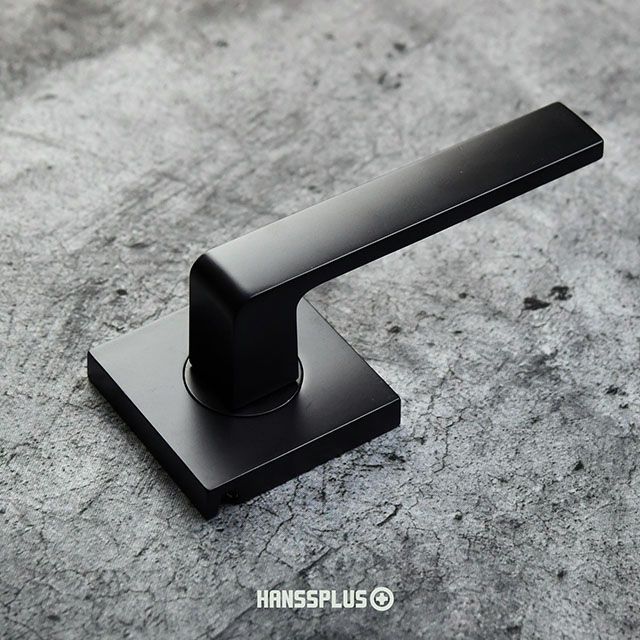

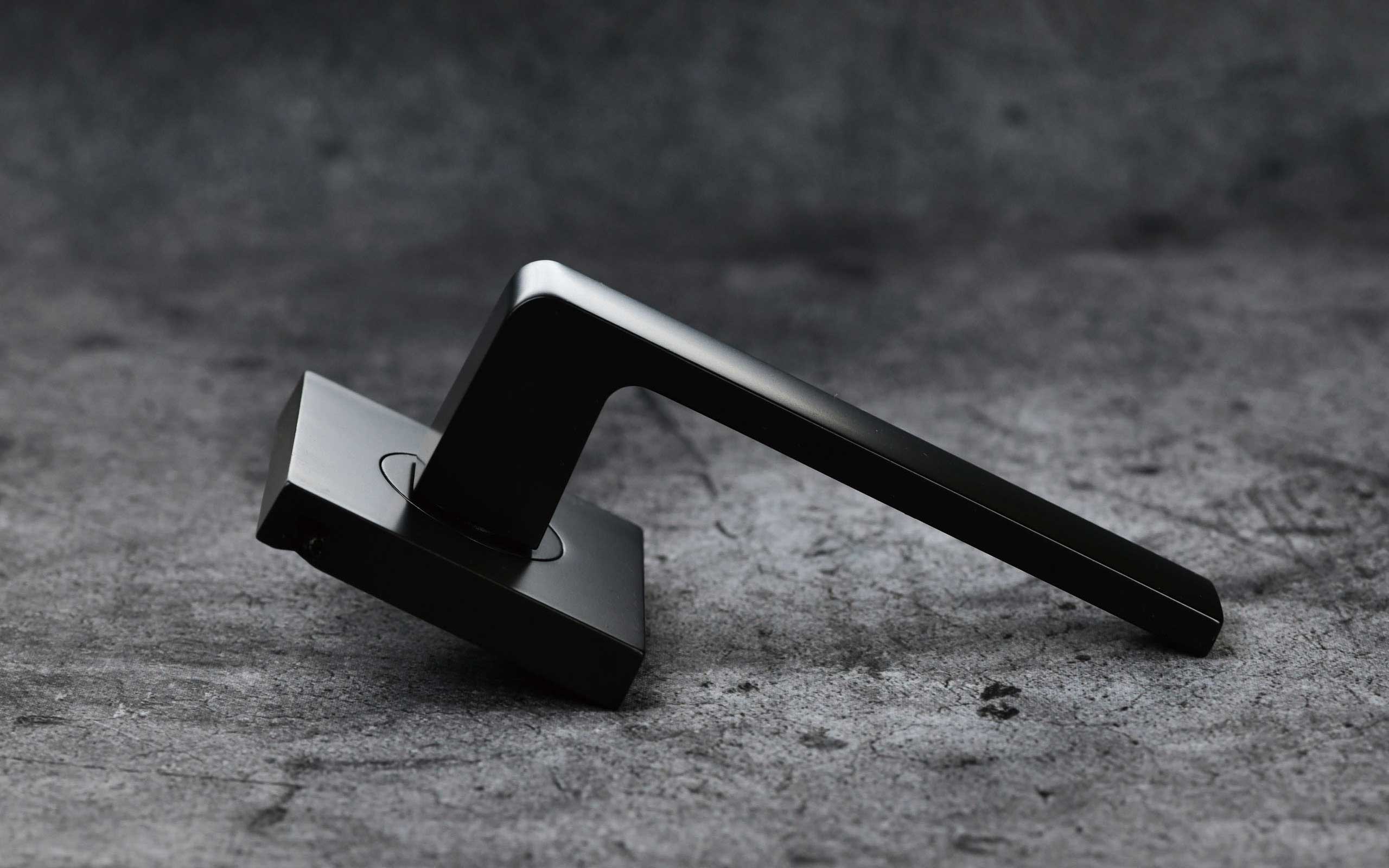

WARTEN SQUARE SQUARE HANDLE ON THE SQUARE ROSETTE IN MATTE BLACK FINISH

FEATURE

Warten Square lever set is a linear and square handle on a 61.5mm square rosette. It suits 50mm borehole. The default passage and private lever sets will suit door thickness from 32mm to 47mm. The square cover conceals on the mounting plate makes it easy to install. It is also available in functional Entrance/Privacy/Dummy.

SURFACE

Available in Chrome CP, Satin Chrome SC, Polished Brass PB, Stain Brass SB, Polished Nickel PN, Satin Nickel SN, Antique Brass AB, Oil rubbed bronze ORB and Black BL finishes.

Industry Index

Mayfair Hardware Corporation Is Your 1 St Best Glass-Knobs Factory. Listthe Suggests This Supplier To You. Buy Your Glass-Knobs From The Best Glass-Knobs Factories!

Suggested by Listthe

DHA1007-02-BL

Specification

Item No.	DHA1007-02-BL
Type	Door Handles
Material	zinc alloy
Surface	Available in Chrome CP, Satin Chrome SC, Polished Brass PB, Stain Brass SB, Polished Nickel PN, Satin Nickel SN, Antique Brass AB, Oil rubbed bronze ORB and Black BL finishes.
Dimension	Dimension:145mm x 61.5mm x H48mm
Accessories	7.6mmx7.6mm x100mm Spindle x 1 pcs 5.9mm x 35.5mm Brass Post x 4 pcs M3.8x30mm Screw x 4 pcs 2.5mm Allen key x 1 pcs
Application	Passage set for internal, hallways & non locking doors made of wood.
Remarks	The spindle length can be customized to suit different thickness doors.

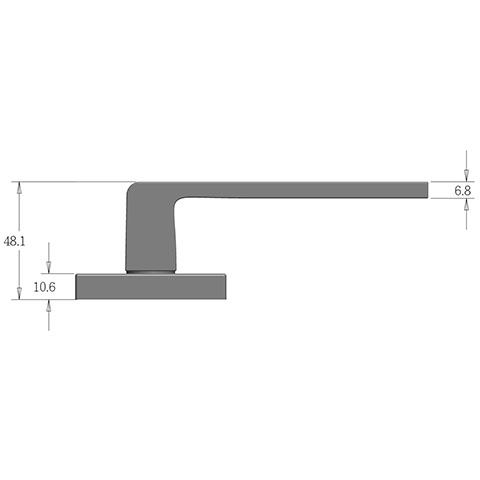

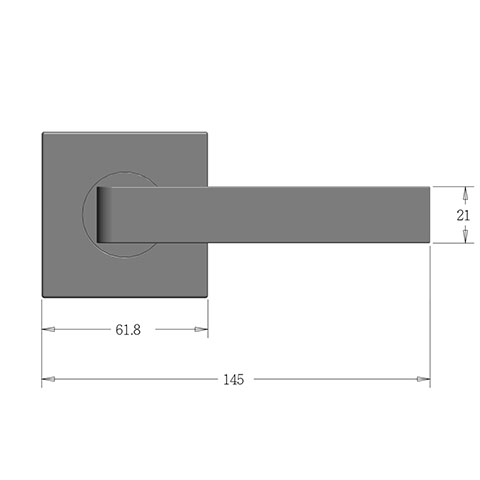

2D_Drawings
